MNIST Tutorial#

Welcome to NNX! This tutorial will guide you through building and training a simple convolutional neural network (CNN) on the MNIST dataset using the NNX API. NNX is a Python neural network library built upon JAX and currently offered as an experimental module within Flax.

1. Install NNX#

Since NNX is under active development, we recommend using the latest version from the Flax GitHub repository:

# !pip install git+https://github.com/google/flax.git

2. Load the MNIST Dataset#

First, the MNIST dataset is loaded and prepared for training and testing using Tensorflow Datasets. Image values are normalized, the data is shuffled and divided into batches, and samples are prefetched to enhance performance.

import tensorflow_datasets as tfds  # TFDS for MNIST
import tensorflow as tf  # TensorFlow operations

tf.random.set_seed(0)  # set random seed for reproducibility

num_epochs = 10
batch_size = 32

train_ds: tf.data.Dataset = tfds.load('mnist', split='train')
test_ds: tf.data.Dataset = tfds.load('mnist', split='test')

train_ds = train_ds.map(
  lambda sample: {
    'image': tf.cast(sample['image'], tf.float32) / 255,
    'label': sample['label'],
  }
)  # normalize train set
test_ds = test_ds.map(
  lambda sample: {
    'image': tf.cast(sample['image'], tf.float32) / 255,
    'label': sample['label'],
  }
)  # normalize test set

# create shuffled dataset by allocating a buffer size of 1024 to randomly draw elements from
train_ds = train_ds.repeat(num_epochs).shuffle(1024)
# group into batches of batch_size and skip incomplete batch, prefetch the next sample to improve latency
train_ds = train_ds.batch(batch_size, drop_remainder=True).prefetch(1)
# create shuffled dataset by allocating a buffer size of 1024 to randomly draw elements from
test_ds = test_ds.shuffle(1024)
# group into batches of batch_size and skip incomplete batch, prefetch the next sample to improve latency
test_ds = test_ds.batch(batch_size, drop_remainder=True).prefetch(1)
/Users/cgarciae/repos/flax/.venv/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

3. Define the Network with NNX#

Create a convolutional neural network with NNX by subclassing nnx.Module.

from flax import nnx  # NNX API
from functools import partial

class CNN(nnx.Module):
  """A simple CNN model."""

  def __init__(self, *, rngs: nnx.Rngs):
    self.conv1 = nnx.Conv(1, 32, kernel_size=(3, 3), rngs=rngs)
    self.conv2 = nnx.Conv(32, 64, kernel_size=(3, 3), rngs=rngs)
    self.avg_pool = partial(nnx.avg_pool, window_shape=(2, 2), strides=(2, 2))
    self.linear1 = nnx.Linear(3136, 256, rngs=rngs)
    self.linear2 = nnx.Linear(256, 10, rngs=rngs)

  def __call__(self, x):
    x = self.avg_pool(nnx.relu(self.conv1(x)))
    x = self.avg_pool(nnx.relu(self.conv2(x)))
    x = x.reshape(x.shape[0], -1)  # flatten
    x = nnx.relu(self.linear1(x))
    x = self.linear2(x)
    return x

model = CNN(rngs=nnx.Rngs(0))
nnx.display(model)
(Loading...)

Run model#

Let’s put our model to the test! We’ll perform a forward pass with arbitrary data and print the results.

import jax.numpy as jnp  # JAX NumPy

y = model(jnp.ones((1, 28, 28, 1)))
nnx.display(y)
(Loading...)

4. Create Optimizer and Metrics#

In NNX, we create an Optimizer object to manage the model’s parameters and apply gradients during training. Optimizer receives the model parameters and an optax optimizer that will define the update rules. Additionally, we’ll define a MultiMetric object to keep track of the Accuracy and the Average loss.

import optax

learning_rate = 0.005
momentum = 0.9

optimizer = nnx.Optimizer(model, optax.adamw(learning_rate, momentum))
metrics = nnx.MultiMetric(
  accuracy=nnx.metrics.Accuracy(),
  loss=nnx.metrics.Average('loss'),
)

nnx.display(optimizer)
(Loading...)

5. Training step#

We define a loss function using cross entropy loss (see more details in optax.softmax_cross_entropy_with_integer_labels()) that our model will optimize over. In addition to the loss, the logits are also outputted since they will be used to calculate the accuracy metric during training and testing.

def loss_fn(model: CNN, batch):
  logits = model(batch['image'])
  loss = optax.softmax_cross_entropy_with_integer_labels(
    logits=logits, labels=batch['label']
  ).mean()
  return loss, logits

Next, we create the training step function. This function takes the model and a data batch and does the following:

  • Computes the loss, logits and gradients with respect to the loss function using nnx.value_and_grad.

  • Updates training accuracy using the loss, logits, and batch labels.

  • Updates model parameters via the optimizer by applying the gradient updates.

@nnx.jit
def train_step(model: CNN, optimizer: nnx.Optimizer, metrics: nnx.MultiMetric, batch):
  """Train for a single step."""
  grad_fn = nnx.value_and_grad(loss_fn, has_aux=True)
  (loss, logits), grads = grad_fn(model, batch)
  metrics.update(loss=loss, logits=logits, labels=batch['label'])
  optimizer.update(grads)

The nnx.jit decorator traces the train_step function for just-in-time compilation with XLA, optimizing performance on hardware accelerators. nnx.jit is similar to jax.jit, except it can transforms functions that contain NNX objects as inputs and outputs.

6. Evaluation step#

Create a separate function to calculate loss and accuracy metrics for the test batch, since this will be outside the train_step function. Loss is determined using the optax.softmax_cross_entropy_with_integer_labels function, since we’re reusing the loss function defined earlier.

@nnx.jit
def eval_step(model: CNN, metrics: nnx.MultiMetric, batch):
  loss, logits = loss_fn(model, batch)
  metrics.update(loss=loss, logits=logits, labels=batch['label'])

7. Seed randomness#

For reproducible dataset shuffling (using tf.data.Dataset.shuffle), set the TF random seed.

tf.random.set_seed(0)

8. Train and Evaluate#

Now we train a model using batches of data for 10 epochs, evaluate its performance on the test set after each epoch, and log the training and testing metrics (loss and accuracy) throughout the process. Typically this leads to a model with around 99% accuracy.

num_steps_per_epoch = train_ds.cardinality().numpy() // num_epochs

metrics_history = {
  'train_loss': [],
  'train_accuracy': [],
  'test_loss': [],
  'test_accuracy': [],
}

for step, batch in enumerate(train_ds.as_numpy_iterator()):
  # Run the optimization for one step and make a stateful update to the following:
  # - the train state's model parameters
  # - the optimizer state
  # - the training loss and accuracy batch metrics
  train_step(model, optimizer, metrics, batch)

  if (step + 1) % num_steps_per_epoch == 0:  # one training epoch has passed
    # Log training metrics
    for metric, value in metrics.compute().items():  # compute metrics
      metrics_history[f'train_{metric}'].append(value)  # record metrics
    metrics.reset()  # reset metrics for test set

    # Compute metrics on the test set after each training epoch
    for test_batch in test_ds.as_numpy_iterator():
      eval_step(model, metrics, test_batch)

    # Log test metrics
    for metric, value in metrics.compute().items():
      metrics_history[f'test_{metric}'].append(value)
    metrics.reset()  # reset metrics for next training epoch

    print(
      f"train epoch: {(step+1) // num_steps_per_epoch}, "
      f"loss: {metrics_history['train_loss'][-1]}, "
      f"accuracy: {metrics_history['train_accuracy'][-1] * 100}"
    )
    print(
      f"test epoch: {(step+1) // num_steps_per_epoch}, "
      f"loss: {metrics_history['test_loss'][-1]}, "
      f"accuracy: {metrics_history['test_accuracy'][-1] * 100}"
    )
2024-04-25 15:11:51.147408: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 1, loss: 0.10209392756223679, accuracy: 96.92666625976562
test epoch: 1, loss: 0.05703972652554512, accuracy: 98.10697174072266
2024-04-25 15:12:16.589051: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 2, loss: 0.04372011497616768, accuracy: 98.63666534423828
test epoch: 2, loss: 0.041248343884944916, accuracy: 98.73797607421875
2024-04-25 15:12:41.074941: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 3, loss: 0.030999813228845596, accuracy: 99.0433349609375
test epoch: 3, loss: 0.05681844428181648, accuracy: 98.49759674072266
2024-04-25 15:13:06.820973: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 4, loss: 0.026122156530618668, accuracy: 99.25333404541016
test epoch: 4, loss: 0.04033380746841431, accuracy: 98.68789672851562
2024-04-25 15:13:32.306590: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 5, loss: 0.023744497448205948, accuracy: 99.31500244140625
test epoch: 5, loss: 0.05083772540092468, accuracy: 98.76802825927734
2024-04-25 15:13:57.767435: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 6, loss: 0.01850314810872078, accuracy: 99.45500183105469
test epoch: 6, loss: 0.04953562840819359, accuracy: 98.85816955566406
2024-04-25 15:14:23.140815: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 7, loss: 0.015862680971622467, accuracy: 99.51166534423828
test epoch: 7, loss: 0.0707646906375885, accuracy: 98.40745544433594
2024-04-25 15:14:49.081003: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 8, loss: 0.018966104835271835, accuracy: 99.47333526611328
test epoch: 8, loss: 0.061334095895290375, accuracy: 98.89823913574219
2024-04-25 15:15:14.341633: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
train epoch: 9, loss: 0.015244723297655582, accuracy: 99.6050033569336
test epoch: 9, loss: 0.07078084349632263, accuracy: 98.78805541992188
train epoch: 10, loss: 0.013812240213155746, accuracy: 99.61500549316406
test epoch: 10, loss: 0.09043453633785248, accuracy: 98.818115234375
2024-04-25 15:15:39.885448: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence
2024-04-25 15:15:39.886727: W tensorflow/core/framework/local_rendezvous.cc:404] Local rendezvous is aborting with status: OUT_OF_RANGE: End of sequence

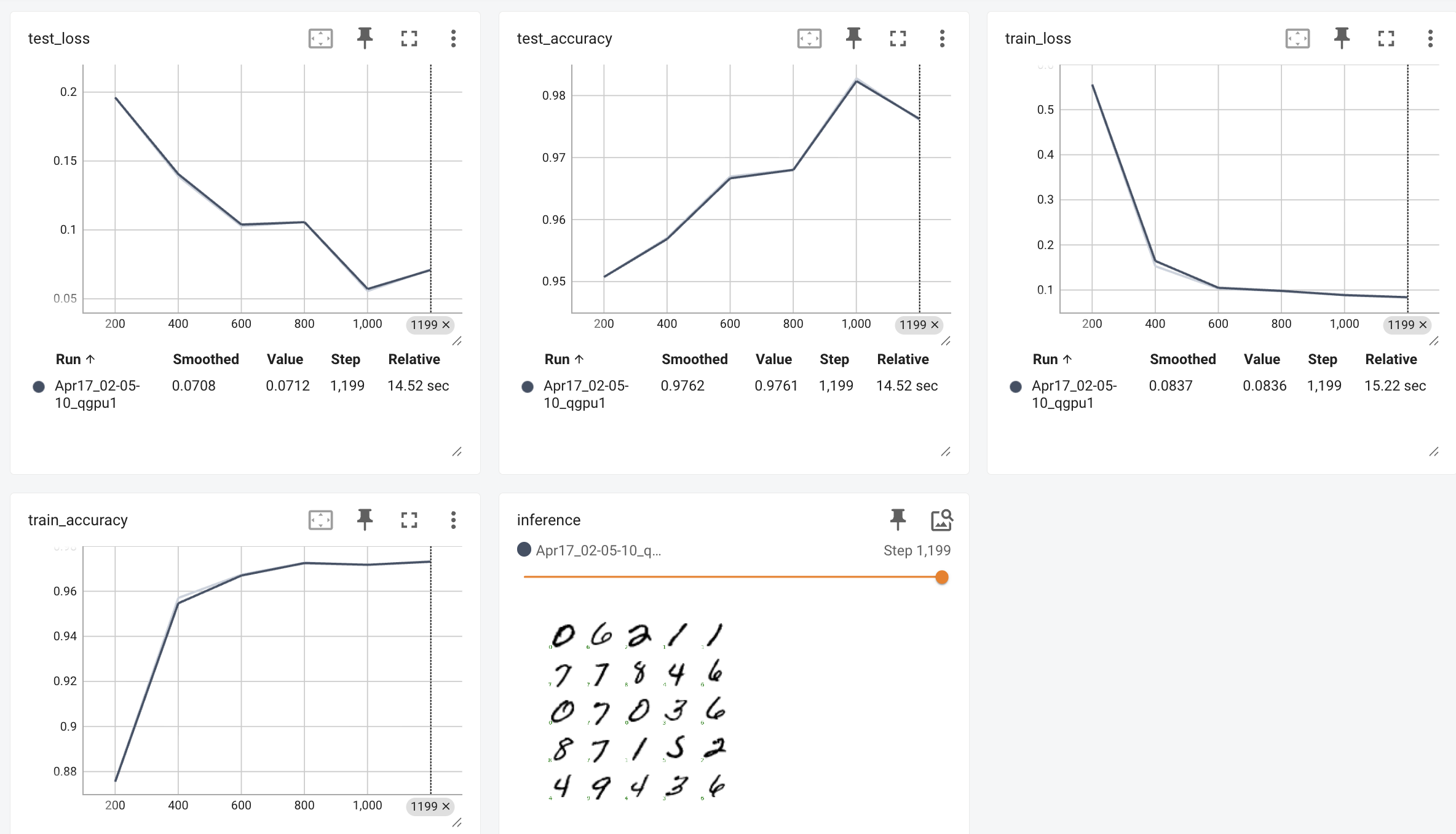

9. Visualize Metrics#

Use Matplotlib to create plots for loss and accuracy.

import matplotlib.pyplot as plt  # Visualization

# Plot loss and accuracy in subplots
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15, 5))
ax1.set_title('Loss')
ax2.set_title('Accuracy')
for dataset in ('train', 'test'):
  ax1.plot(metrics_history[f'{dataset}_loss'], label=f'{dataset}_loss')
  ax2.plot(metrics_history[f'{dataset}_accuracy'], label=f'{dataset}_accuracy')
ax1.legend()
ax2.legend()
plt.show()
../_images/6f6098767975d4b214b0c227511a283fe955a5dc2a4577d816326627ed4932d0.png

10. Perform inference on test set#

Define a jitted inference function, pred_step, to generate predictions on the test set using the learned model parameters. This will enable you to visualize test images alongside their predicted labels for a qualitative assessment of model performance.

@nnx.jit
def pred_step(model: CNN, batch):
  logits = model(batch['image'])
  return logits.argmax(axis=1)
test_batch = test_ds.as_numpy_iterator().next()
pred = pred_step(model, test_batch)

fig, axs = plt.subplots(5, 5, figsize=(12, 12))
for i, ax in enumerate(axs.flatten()):
  ax.imshow(test_batch['image'][i, ..., 0], cmap='gray')
  ax.set_title(f'label={pred[i]}')
  ax.axis('off')
../_images/1938294f6806d182e21908baf0554ba9250b84cd73d0835ce23b6cca2e6a12d5.png

Congratulations! You made it to the end of the annotated MNIST example.
